| 1 |
Product Name |
LED Display Screen |
LED Display Screen |
LED Display Screen |
LED Display Screen |
| 2 |
Product Model |
UW2.6 |
UW2.9 |
UW3.9 |
UW4.8 |
| II. Physical Parameters |
|
|
|
|
|
| 1 |
Product Size (Width × Height × Thickness) |
500100075mm |
500100075mm |
500100075mm |
500100075mm |
| 2 |
Chassis Resolution (Width × Height) |
192*192 |
168*168 |
128*128 |
104*104 |
| 3 |
Driving Method |
1/32 |
1/28 |
1/16 |
1/13 |
| 4 |
Horizontal Viewing Angle / Vertical Viewing Angle |
≤140°/140° |
≤140°/140° |
≤140°/140° |
≤140°/140° |
| 5 |
Chassis Weight |
8.0Kg/PCS |
8.0Kg/PCS |
8.0Kg/PCS |
8.0Kg/PCS |
| 6 |
Input Signal Interface |
RJ45 |
RJ45 |
RJ45 |
RJ45 |
| 7 |
Power Signal Interface |
Ohm Connector |
Ohm Connector |
Ohm Connector |
Ohm Connector |
| 8 |
Protection Level |
IP6X |
IP6X |
IP6X |
IP6X |
| III. Optical Parameters |
|
|
|
|
|
| 1 |
Brightness |
≥4000cd |
≥4000cd |
≥4000cd |
≥4000cd |
| 2 |
Grayscale |
≥13bit |
≥13bit |
≥13bit |
≥13bit |
| 3 |
Color Temperature |
6500K～8500K |
6500K～8500K |
6500K～8500K |
6500K～8500K |
| 4 |
Contrast Ratio |
≥4000:1 |
≥4000:1 |
≥4000:1 |
≥4000:1 |
| 5 |
Brightness Adjustment |
Manual/Programmed Control |
Manual/Programmed Control |
Manual/Programmed Control |
Manual/Programmed Control |
| IV. Electrical Parameters |
|
|
|
|
|
| 1 |
Operating Voltage |
AC：110V~220V |
AC：110V~220V |
AC：110V~220V |
AC：110V~220V |
| 2 |
Peak Power |
≤140W/PCS |
≤120W/PCS |
≤100W/PCS |
≤98W/PCS |
| 3 |
Average Power |
50-80W/PCS |
30-45W/PCS |
25-40W/PCS |
20-35W/PCS |
| V. Performance Parameters |
|
|
|
|
|
| 1 |
Refresh Rate |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
| 2 |
Frame Rate |
60fps |
60fps |
60fps |
60fps |
| 3 |
Color Calibration |
Equipped with brightness and chromaticity point-by-point calibration |
Equipped with brightness and chromaticity point-by-point calibration |
Equipped with brightness and chromaticity point-by-point calibration |
Equipped with brightness and chromaticity point-by-point calibration |
| 4 |
Whole Screen Dead Pixels |
≤0.003%, 0 at factory |
≤0.003%, 0 at factory |
≤0.003%, 0 at factory |
≤0.003%, 0 at factory |
| 5 |
Regional Dead Pixels |
≤0.009% |
≤0.009% |
≤0.009% |
≤0.009% |
| 6 |
Screen Temperature Rise (in operating state) |
≤5℃ |
≤5℃ |
≤5℃ |
≤5℃ |
| 7 |
Compatible with Module Data Storage |
Compatible with module data storage |
Compatible with module data storage |
Compatible with module data storage |
Compatible with module data storage |
| 8 |
Support for EMC |
Support for EMC |
Support for EMC |
Support for EMC |
Support for EMC |
| 9 |
Support for Dual Signal Backup |
Support for dual signal backup |
Support for dual signal backup |
Support for dual signal backup |
Support for dual signal backup |
| 10 |
Single Chassis Flatness |
≥97% |
≥97% |
≥97% |
≥97% |
| VI. Applicable Scenarios |
|
|
|
|
|
| 1 |
Operating Environment Temperature |
-10℃～60℃ |
-10℃～60℃ |
-10℃～60℃ |
-10℃～60℃ |
| 2 |
Operating Environment Humidity |
35%～75%RH, no condensation |
35%～75%RH, no condensation |
35%～75%RH, no condensation |
35%～75%RH, no condensation |
| 3 |
Application Scenario |
Outdoor |
Outdoor |
Outdoor |
Outdoor |
QRAY LED

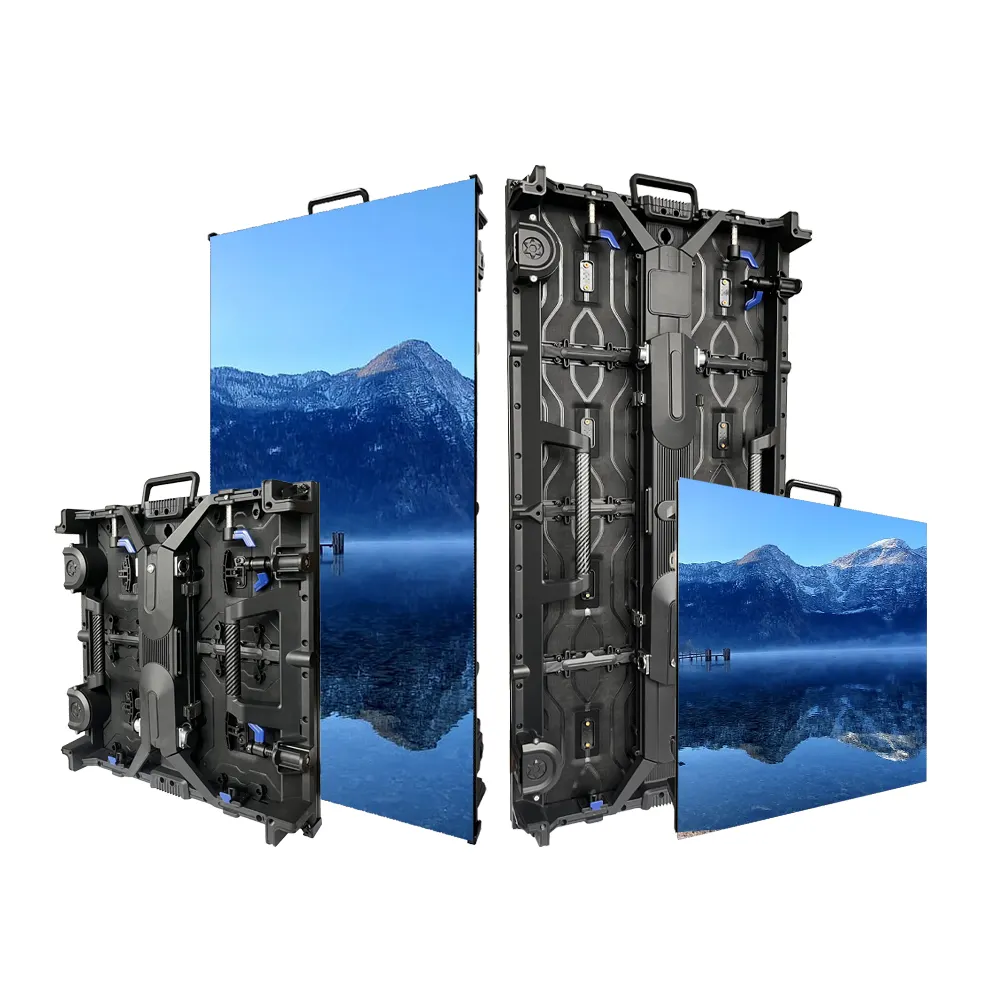

The LED High-Definition Full-Color Rental Screen offers versatile indoor and outdoor use with a pixel pitch of 1.953mm and SMD1515 LED configuration. It features a die-casting aluminum cabinet, ensuring durability and lightweight design at 6.76kg per panel. Certified by CCC, it guarantees compliance with quality and safety standards, providing market access assurance for diverse applications such as shopping malls, airports, and education.
