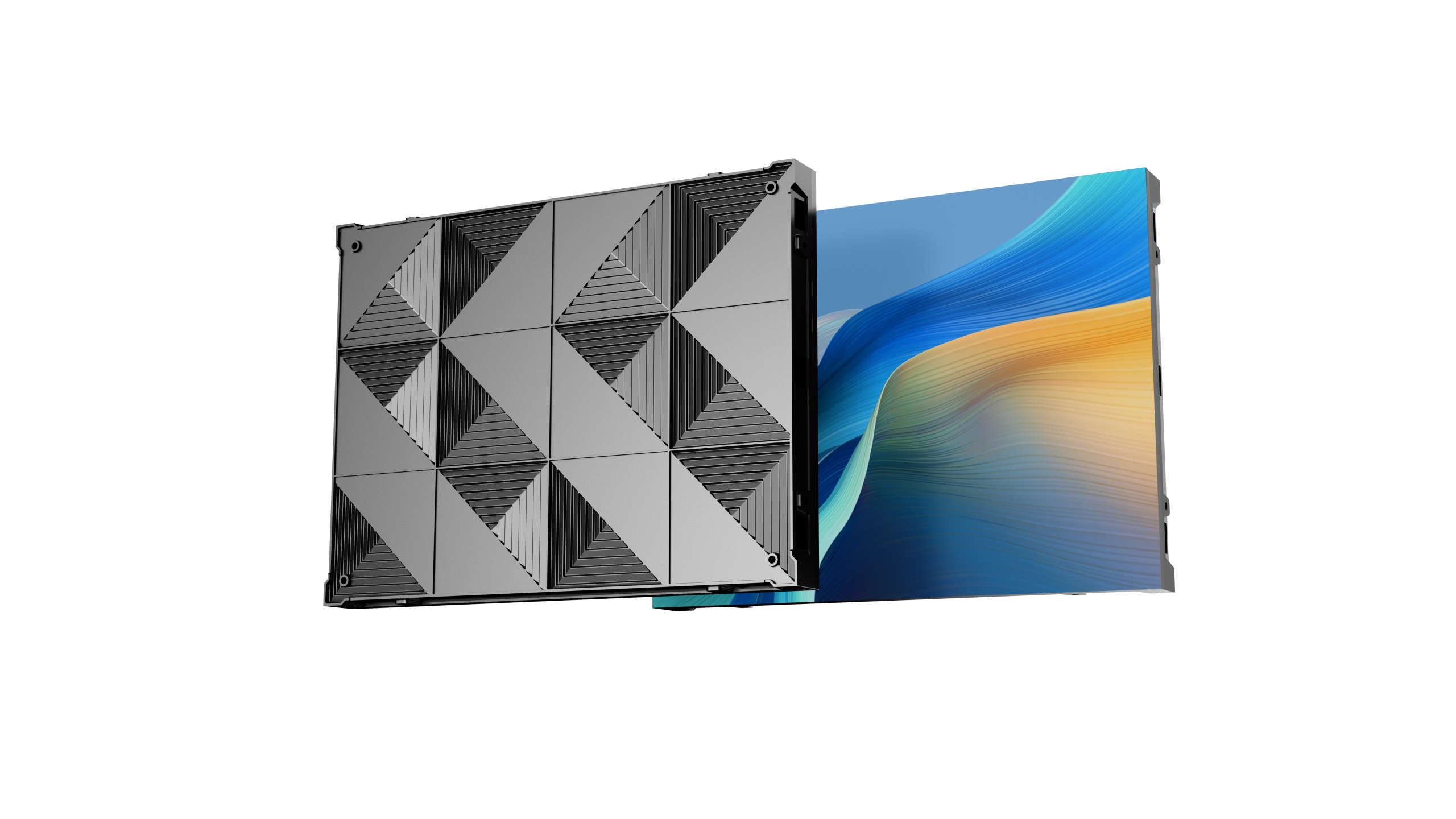

KV Series P1.2-P2.5 Fine Pitch LED Display

LED Display Inquiry Form

New LED Display Solutions for You

Full Name	Width in millimeter	Business Email	Height in millimeter
Business Number	Select Display	Select Your Country	Project Status

Professional-Grade Fine Pitch LED Solution

The KV Series redefines visual excellence with its cutting-edge SBM+GOB production technology, delivering unprecedented 4K clarity at viewing distances as close as 0.5m. Engineered for mission-critical environments including:

Corporate boardrooms requiring flawless presentation displays
Broadcast studios demanding color-critical monitoring
Retail spaces needing eye-catching digital signage
Control rooms where 24/7 reliability is paramount

I. Product Details
1	Product Name	LED Display	LED Display	LED Display	LED Display
2	Product Model	K1.25	K1.53	K1.86	K2.5
II. Physical Parameters
1	Product Size (W × H × T)	64048032mm	64048032mm	64048032mm	64048032mm
2	Chassis Resolution (W × H)	512*384	416*312	344*258	256*192
3	Driving Method	1/64	1/52	1/43	1/32
4	Horizontal Viewing Angle / Vertical Viewing Angle	≤120°/120°	≤120°/120°	≤120°/120°	≤120°/120°
5	Chassis Weight	5Kg/PCS	5Kg/PCS	5Kg/PCS	5Kg/PCS
6	Input Signal Interface	RJ45	RJ45	RJ45	RJ45
7	Power Signal Interface	Ohm Connector	Ohm Connector	Ohm Connector	Ohm Connector
8	Protection Level	IP5X	IP5X	IP5X	IP5X

1	Brightness	≥500cd	≥500cd	≥500cd	≥500cd
2	Gray Scale	≥13bit	≥13bit	≥13bit	≥13bit
3	Color Temperature	6500K～8500K	6500K～8500K	6500K～8500K	6500K～8500K
4	Contrast Ratio	≥4000:1	≥4000:1	≥4000:1	≥4000:1
5	Brightness Adjustment	Manual / Automatic / Program-controlled	Manual / Automatic / Program-controlled	Manual / Automatic / Program-controlled	Manual / Automatic / Program-controlled
IV. Electrical Parameters
1	Operating Voltage	AC：110V~220V	AC：110V~220V	AC：110V~220V	AC：110V~220V
2	Peak Power	≤150W/ PCS	≤90W/ PCS	≤85W/PCS	≤72W/PCS
3	Average Power	50-80W/PCS	30-45W/PCS	25-40W/PCS	20-35W/PCS
V. Performance Parameters
1	Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
2	Frame Rate	60fps	60fps	60fps	60fps
3	Color Calibration	Equipped with brightness and chromaticity point-by-point calibration	Equipped with brightness and chromaticity point-by-point calibration	Equipped with brightness and chromaticity point-by-point calibration	Equipped with brightness and chromaticity point-by-point calibration
4	Whole Screen Dead Pixels	≤0.003%, 0 at factory	≤0.003%, 0 at factory	≤0.003%, 0 at factory	≤0.003%, 0 at factory
5	Regional Dead Pixels	≤0.009%	≤0.009%	≤0.009%	≤0.009%
6	Screen Temperature Rise (in operating state)	≤5℃	≤5℃	≤5℃	≤5℃
7	Compatible with Module Data Storage	Compatible with module data storage	Compatible with module data storage	Compatible with module data storage	Compatible with module data storage
8	Support for Electromagnetic Compatibility	Support for electromagnetic compatibility	Support for electromagnetic compatibility	Support for electromagnetic compatibility	Support for electromagnetic compatibility
9	Support for Dual Signal Backup	Support for dual signal backup	Support for dual signal backup	Support for dual signal backup	Support for dual signal backup
10	Support for Dual Power Backup	Support for dual power backup	Support for dual power backup	Support for dual power backup	Support for dual power backup
11	Flatness	≥98%	≥98%	≥98%	≥98%
VI. Applicable Scenarios
1	Operating Ambient Temperature	-10℃～60℃	-10℃～60℃	-10℃～60℃	-10℃～60℃
2	Operating Ambient Humidity	35%～75% RH, no condensation	35%～75% RH, no condensation	35%～75% RH, no condensation	35%～75% RH, no condensation
3	Usage Scenario	Indoor	Indoor	Indoor	Indoor
