Next-Gen Commercial LED Display
All-in-one digital signage solution for retail and corporate environments:

✔ Cloud Management – 5G/WiFi remote control
✔ Ultra HD – 3840×2160 @ 1200cd/m²
✔ Multi-Size – 32″ to 220″ configurations
✔ Energy Saving – 35% less power consumption
✔ Analytics – Built-in foot traffic tracking

Key Specs
▸ Brightness: 500-5000cd/m²
▸ Refresh Rate: ≥3840Hz
▸ Connectivity: WiFi 6/5G/RJ45/HDMI 2.1
▸ Protection: IP54(indoor)/IP65(outdoor)
▸ Lifespan: ≥100,000 hours

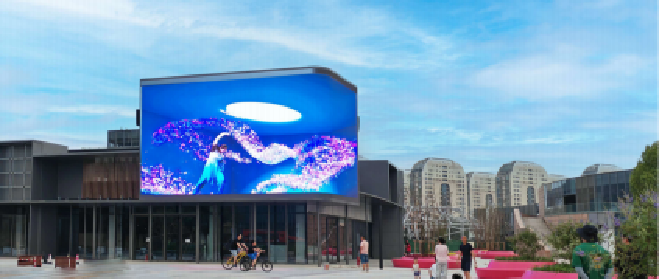

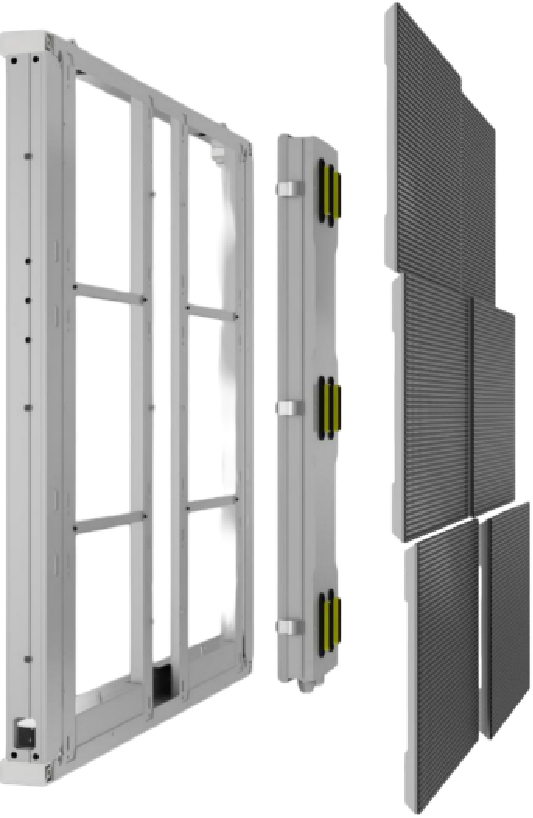

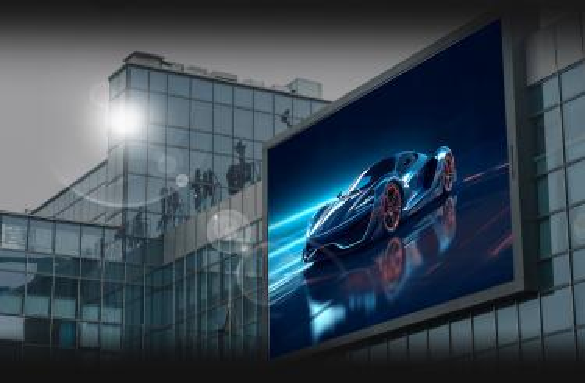

Feature highlights:The P10 Full Color LED Display features a 960x960mm aluminum cabinet with IP65 protection, offering high brightness (4500-5500 nit) and a 14-bit grayscale for vibrant outdoor advertising. Certified by CCC, ensuring compliance with quality and safety standards, it provides market access and reliability for various applications like retail stores, airports, and exhibitions.

Technical Parameter
Items	T660A	T800A	T1000A
Pixel Pitch（ mm）	6.667	8.0	10
Cabinet Density（ dots /m²）	22500	15625	10000
Module Size（L x W x H）/( mm)	480*320mm	480*320mm	480*320mm
Cabinet Size（L x W x H）/( mm)	96096084.8mm	96096084.8mm	96096084.8mm
Cabinet Material	aluminum profile
Cabinet Weight ( Per Panel/ kg)	26.5kg	26.5kg	26.5kg
Gray Scale(Bit)	14
Refresh Rate（ Hz）	2880~3840
Brightness（ nit）	4500-5000	5000-5500	5000-5500
Contrast ratio	6,000:1
Input Voltage（ V）	AC110~240V
Input Frequency（ Hz）	50/60HZ
Power Consumption Max.( W/m²）	500	545	550
Power Consumption Ave.（ W/m²）	170	180	185
Protection Level	IP65
Installation Type	Hanging / Stacking
Maintenance Type	Front and Rear

Items	T390B-500	T390B-750	T390B-1000	T480B-500	T480B-750	T480B-1000
Pixel Pitch（ mm）	3.9	3.9	3.9	4.8	4.8	4.8
Cabinet Density（ dots /m²）	65536			43264
Module Size（L x W ）/( mm)	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm
Cabinet Size（L x W x H）/( mm)	50050082mm	50075082mm	500100082mm	50050082mm	50075082mm	500100082mm
Cabinet Material	aluminum profile
Cabinet Weight ( Per Panel/ kg)	9.6kg	12.5kg	16.6kg	9.6kg	12.5kg	16.6kg
Gray Scale(Bit)	14
Refresh Rate（ Hz）	3840
Brightness（ nit）	5000
Contrast ratio	6,000:1
Input Voltage（ V）	AC200~240V±10%
Input Frequency（ Hz）	50/60HZ
Power Consumption Max.( W/m²）	560			560
Power Consumption Ave.（ W/m²）	200			200
Protection Level	IP65
Installation Type	Hanging / Stacking
Maintenance Type	Front and Rear
