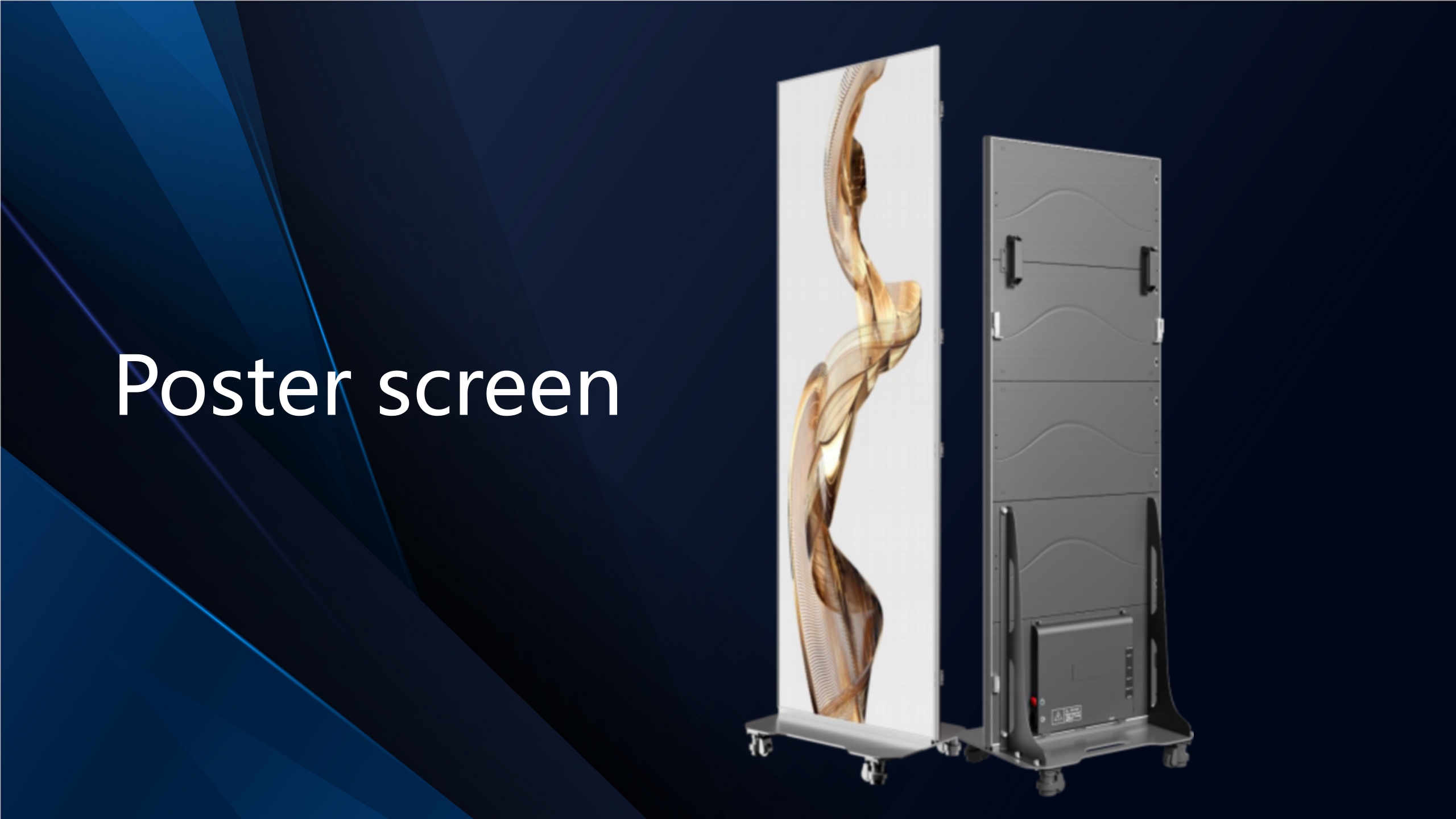

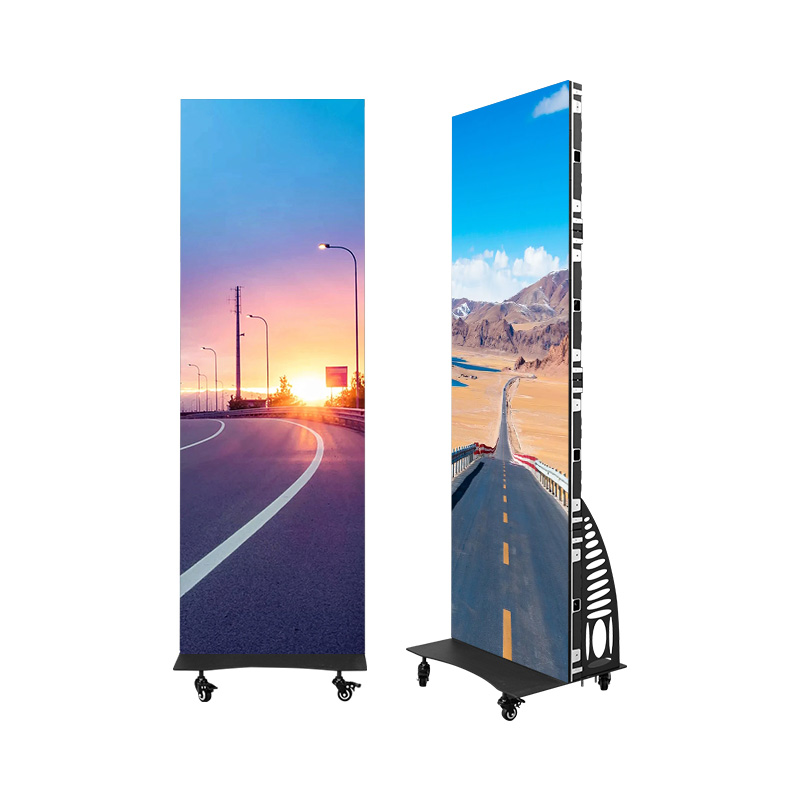

Smart LED Poster – Remote Control & Multi-Screen Sync

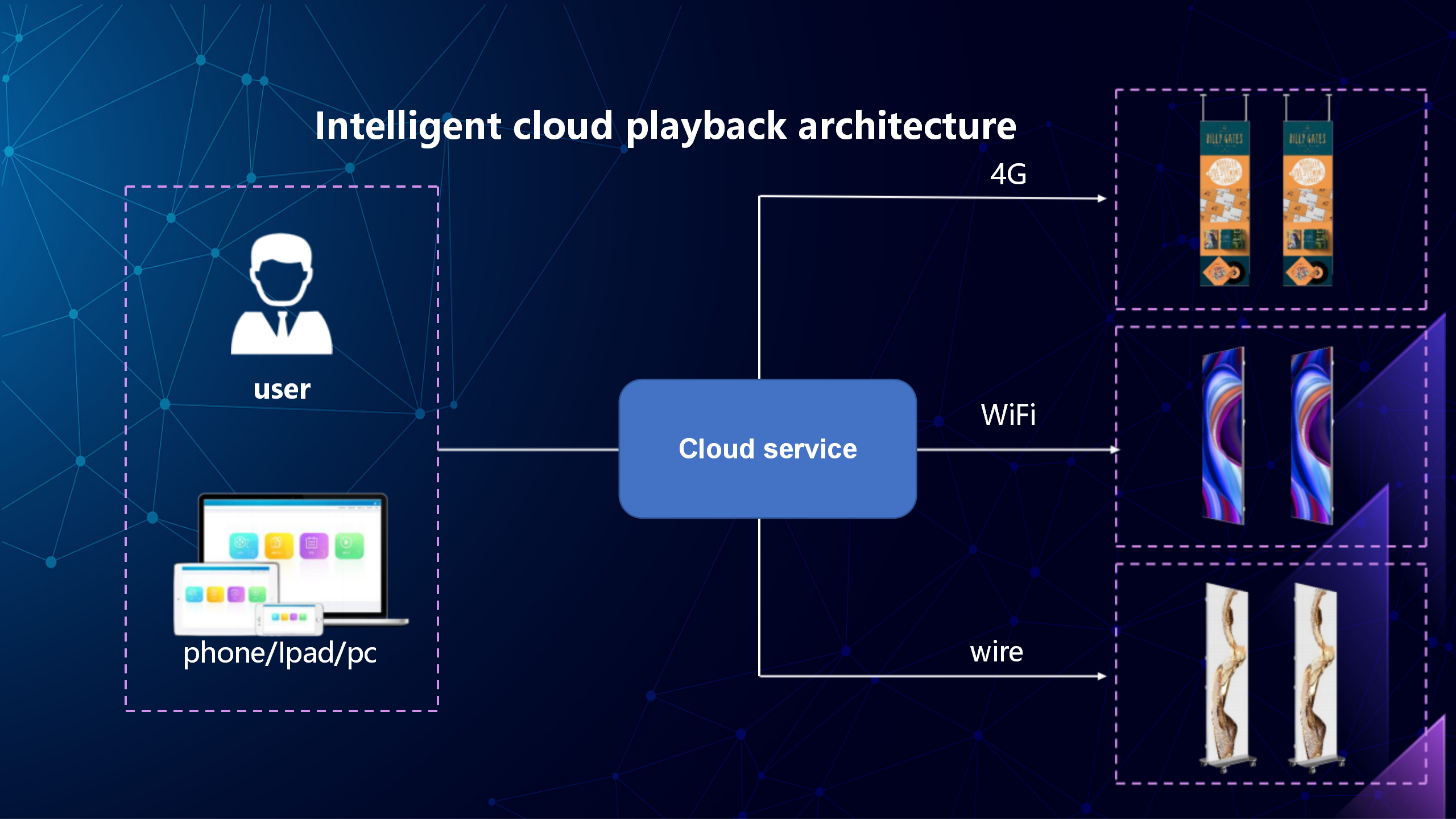

✔ Cross-Platform Control - Update content via web/iOS/Android (WiFi/4G/5G)

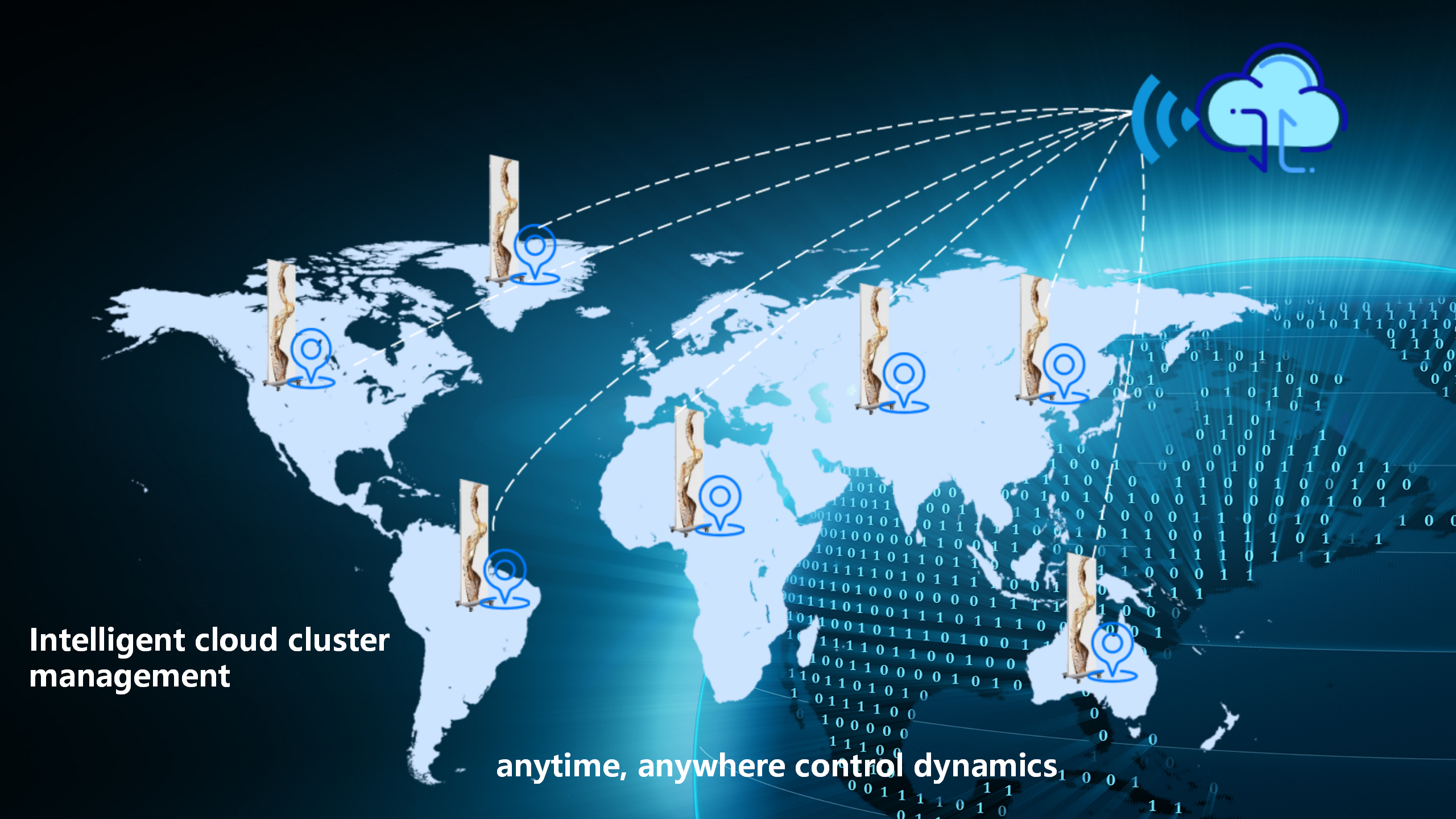

✔ Centralized Management - Control 1000+ screens nationwide from HQ

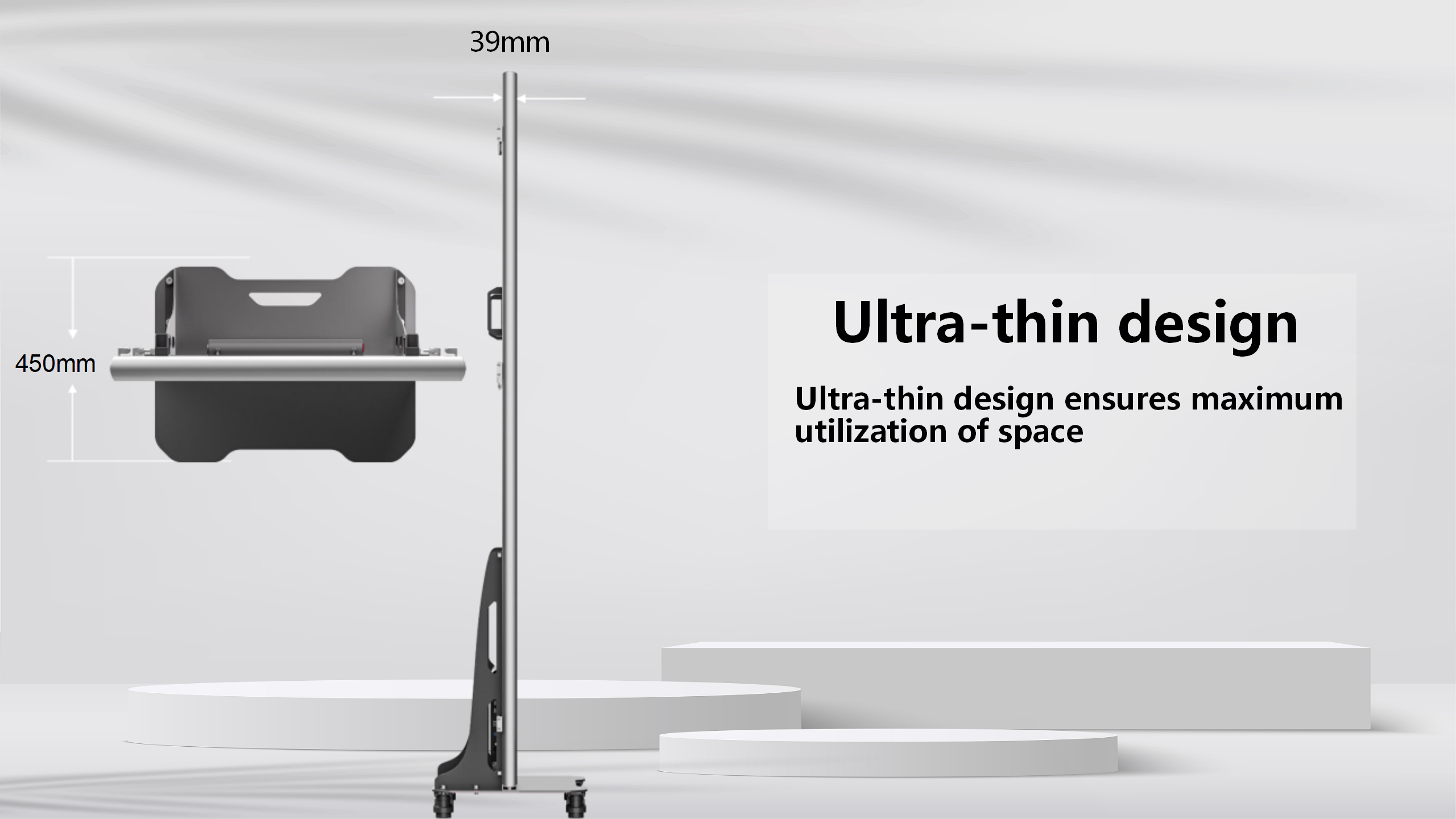

✔ Ultra-Slim Profile - 35mm thickness saves 50% space

✔ Sunlight Readable - 4500cd/m² brightness for outdoor visibility

  • Product Details
  • Product Specifications
  • FAQs
New LED Display Solutions for You

New LED Display Solutions for You

Connected LED Poster Display System Next-gen digital signage solution for retail, F&B and hospitality:

✔ Cross-Platform Control – Update content via web/iOS/Android (WiFi/4G/5G)

✔ Centralized Management – Control 1000+ screens nationwide from HQ

✔ Ultra-Slim Profile – 35mm thickness saves 50% space

✔ Sunlight Readable – 4500cd/m² brightness for outdoor visibility

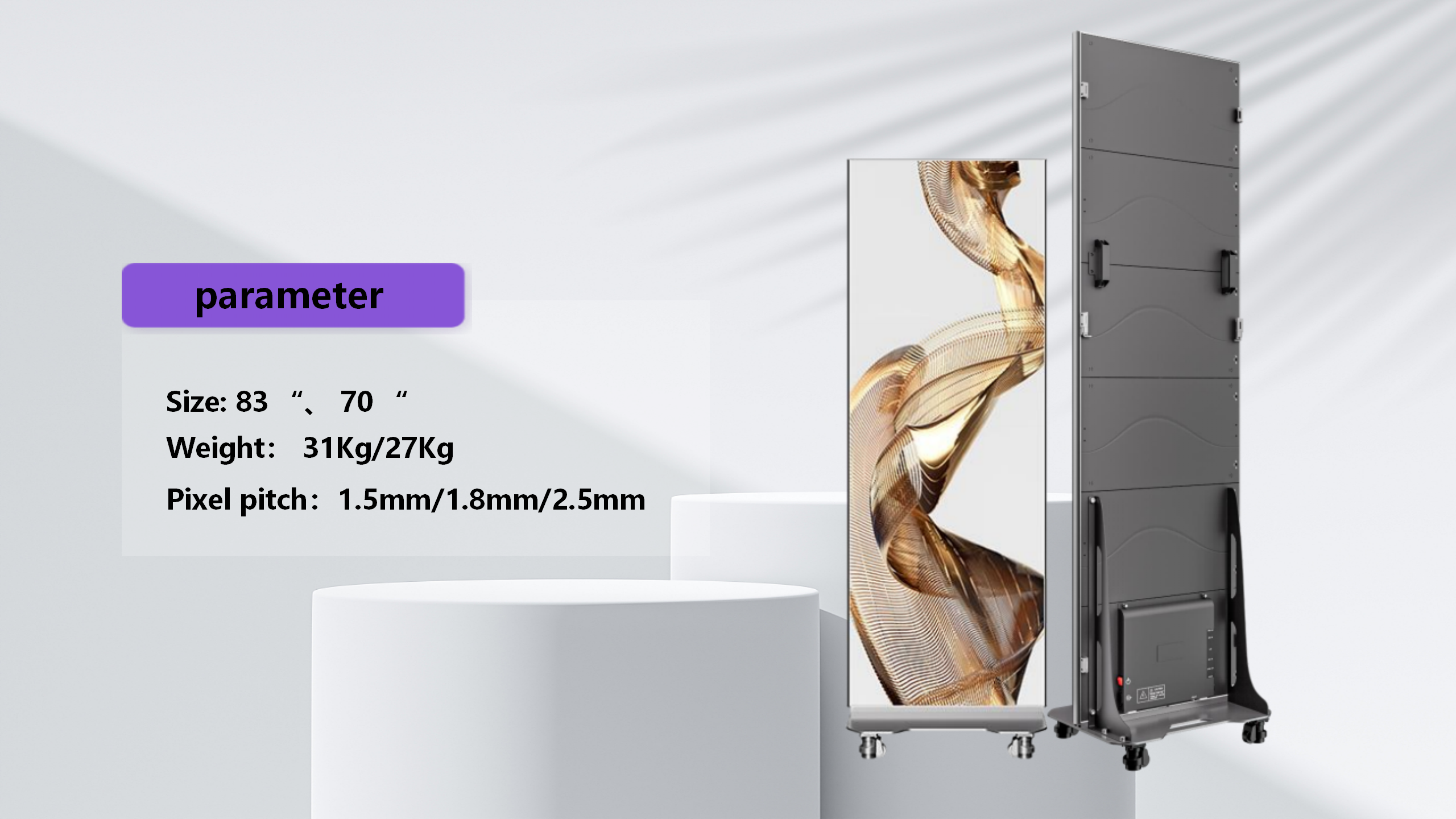

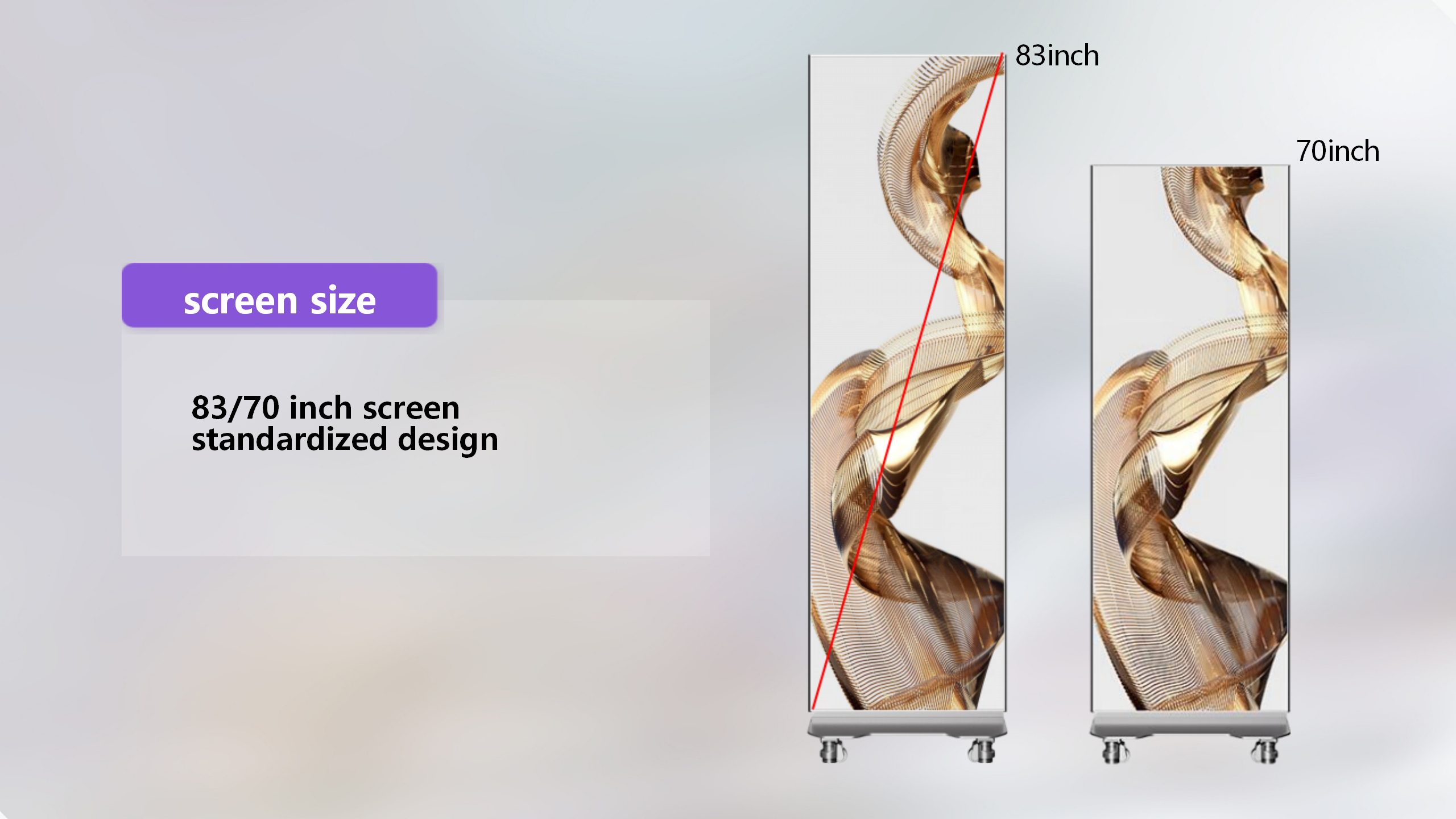

Specifications ▸ Sizes: 70 inches/83 inches/Customize

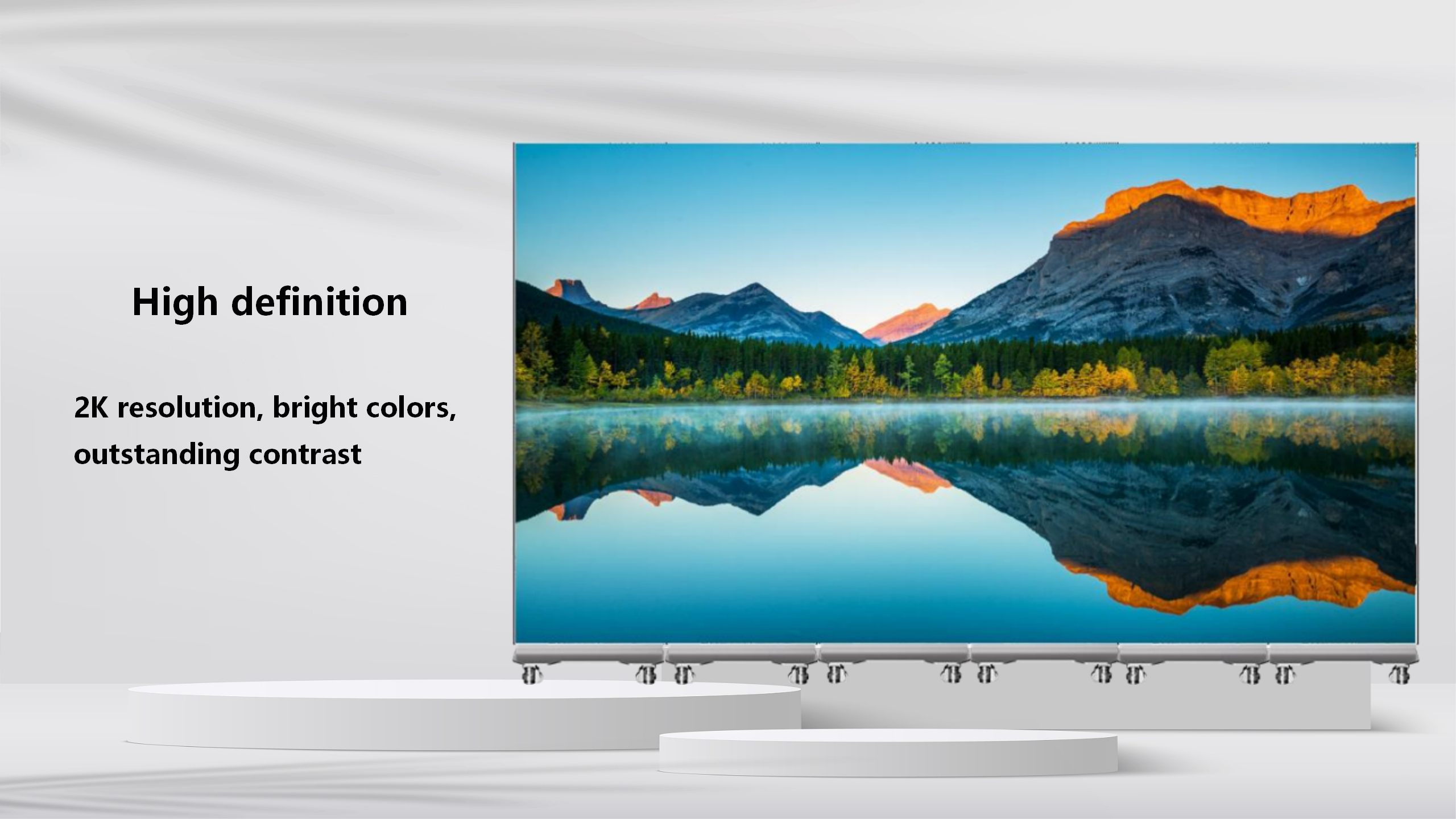

▸ Resolution: Full HD to 4K UHD

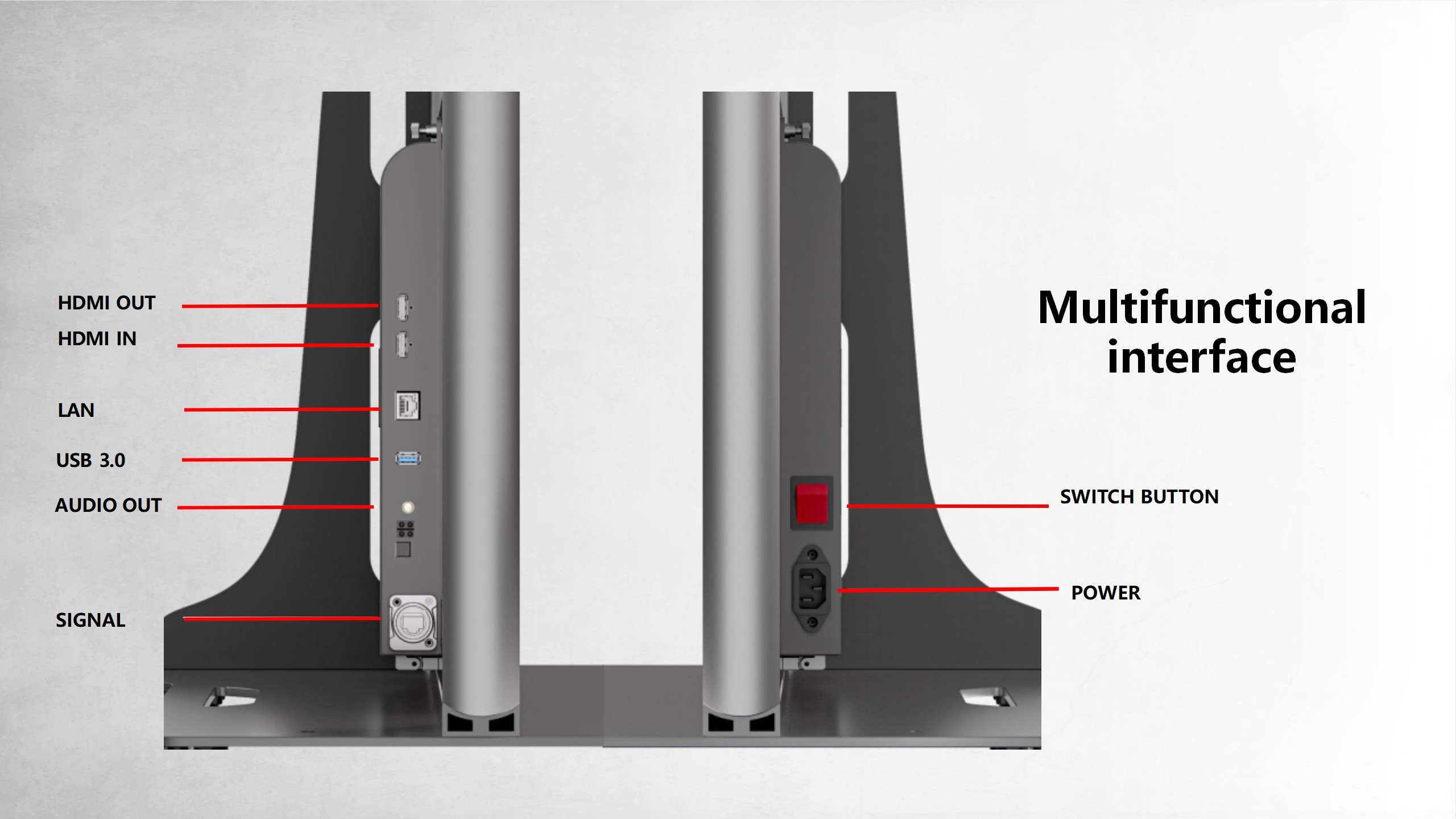

▸ Connectivity: WiFi 6/Bluetooth 5.2/5G/RJ45

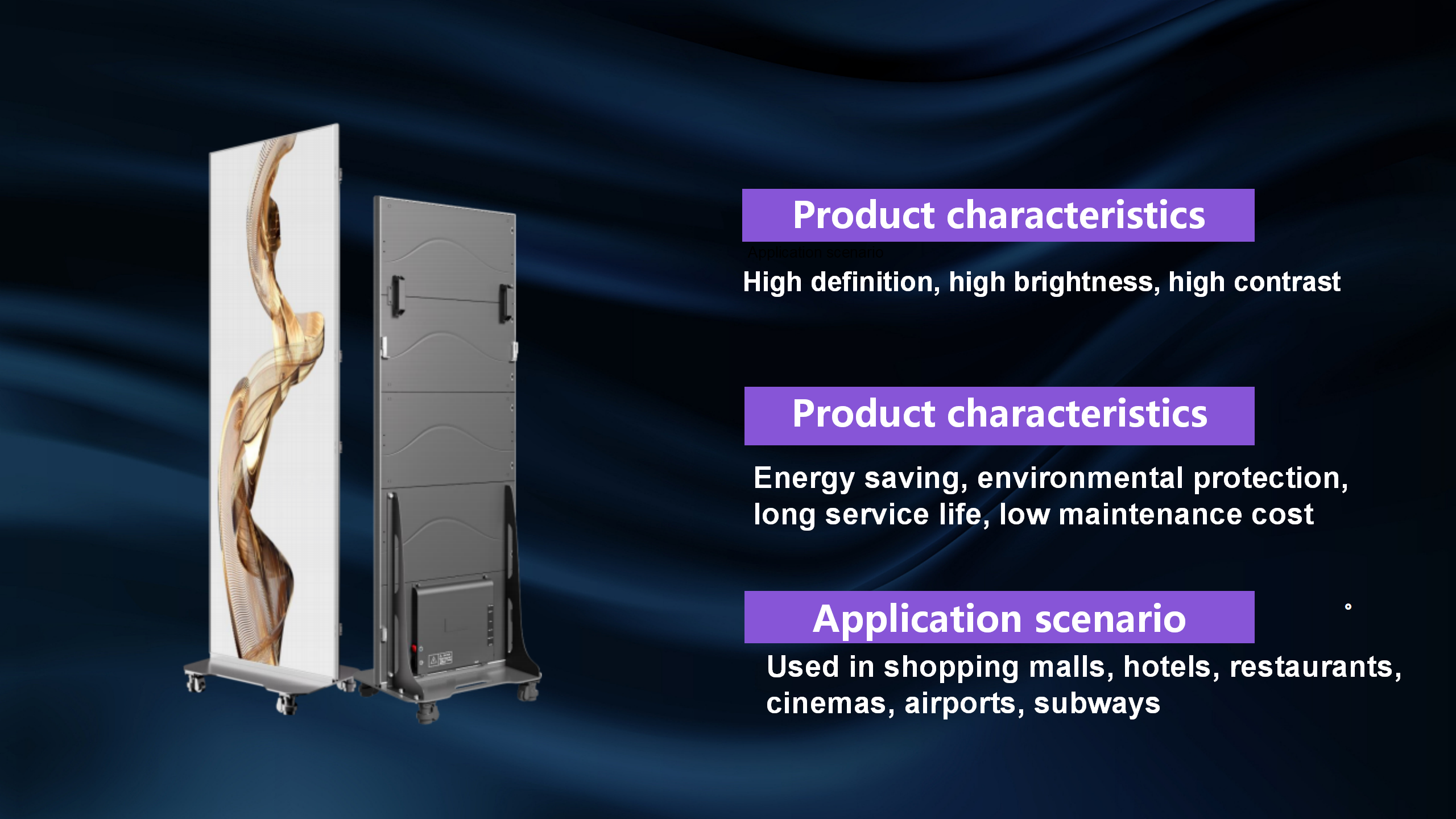

Applications:

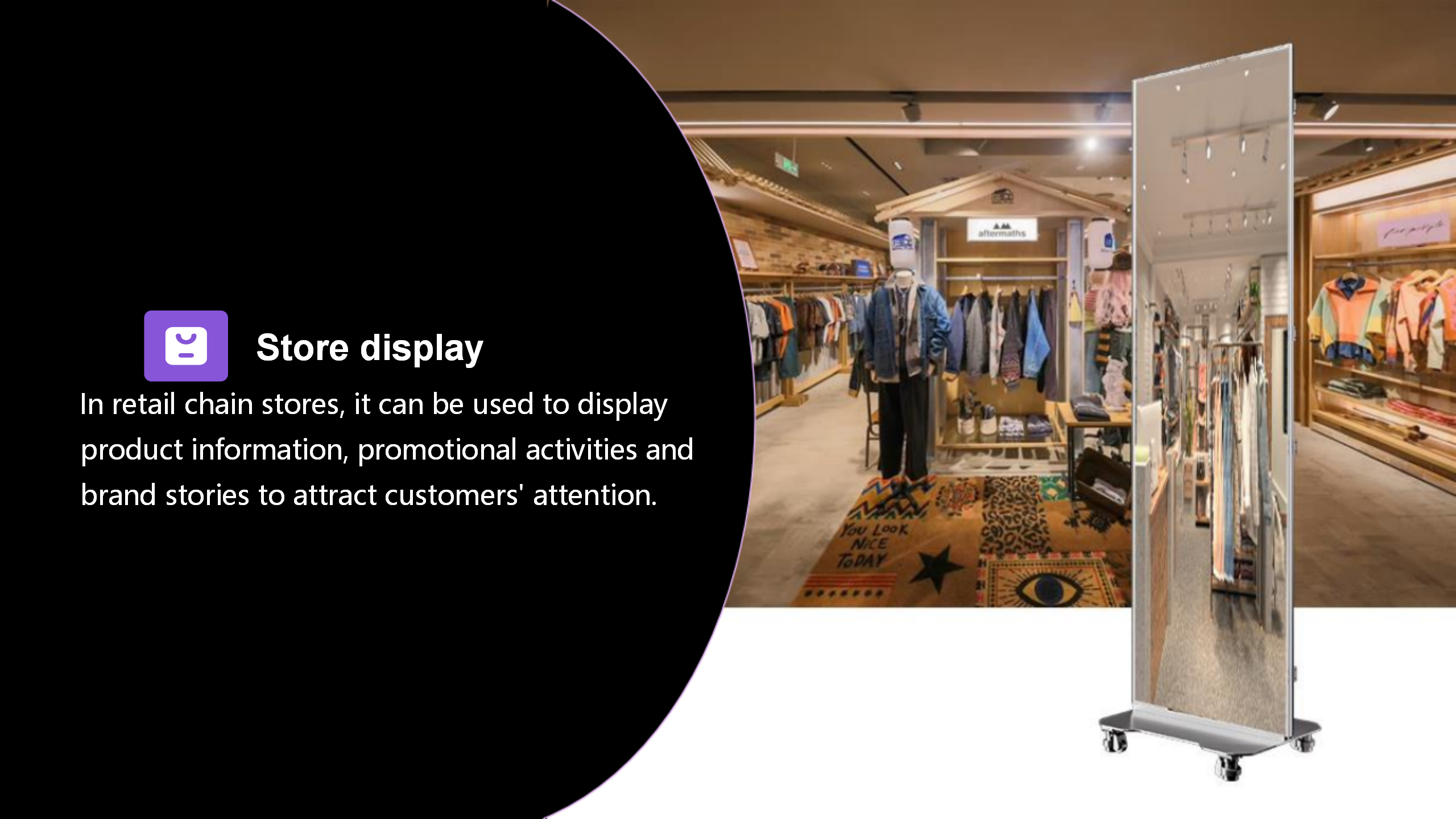

  • Chain store promotions

  • Hotel digital directories

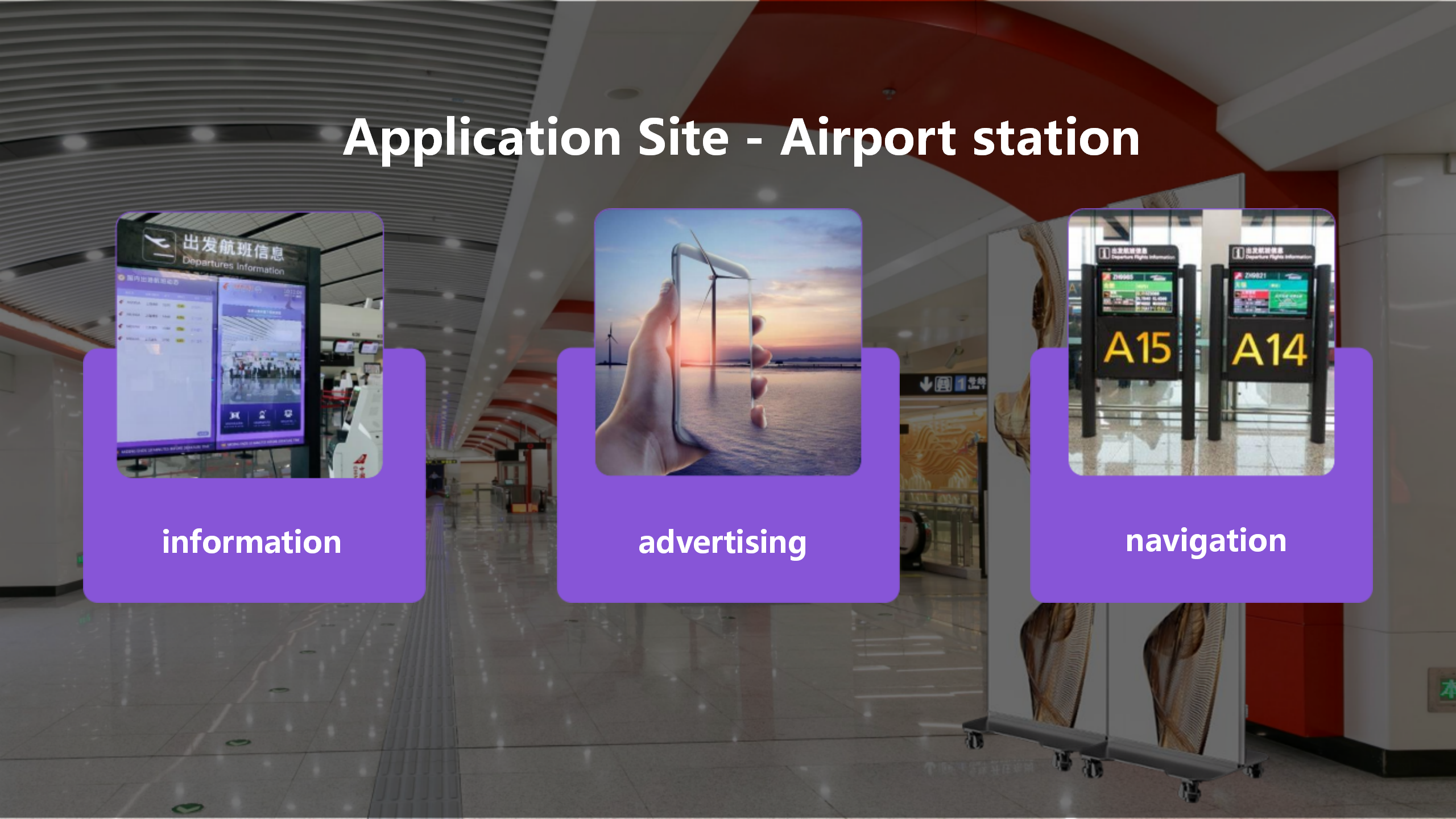

  • Airport flight displays

Model Z640-P1.25 Z640-P1.538 Z640-P1.667 Z640-P1.86 Z640-P2.0 Z640-P2.5
LED SMD 3 IN 1
Pixel pitch (mm) 1.25 1.538 1.667 1.86 2 2.5
Moduel resolution 256*128 208*104 192*96 172*86 160*80 128*64
Moduel size (W*H) 320mm*160mm
Moduel weight (kg) 0.38kg
Module quantity (W*H) 2*12pcs
Pixel density (dots/m2) 640000 422753 359856 289050 250000 160000
Screen resolution (W*H) 512*1536 408*1248 384*1152 344*1032 320*960 256*768
Display Area (mm) 640*1920mm
Overall size (mm) W680*H2080*L450mm
Weight (kg) 48kg
Material Die-Casting Aluminum
Protection Level IP30
Color temperature (K) 3,200-12,000(adjustable)
Brightness (nits) 600-800
Viewing angle H.140°/V.140°
Contrast ratio 4,000:1
Power Consumption Max. 400 W/PCS
Power Consumption Ave. 120 W/PCS
Input Voltage  (V) AC110/220V
Refresh Rate  (Hz) ≥3840Hz
Life span 50000 Hours
Working temperature ( ℃ ) -10℃~40 ℃
Storage temperature  ( ℃ ) -20℃~60℃
Working humidity ( RH ) 10-60%RH
Storage humidity  ( RH ) 10-60%RH
Application Indoor
Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your payment if we have the item in stock. Otherwise, please confirm with us for lead time.
Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union, and Alibaba Trade Assurance.We only accept Paypal and Western Union, and Alibaba Trade Assurance for payment amounts below USD400.
Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.
Q: What if the Wireless Charging Bundle is not charging my device(s)?
​A: 1. Check to ensure that your device is Qi-compliant.
2. Check to ensure that the AC adapter you’re using with the Wireless Charging Bundle has an output of 2A or more.
3. Check to ensure that you are placing your phone on the center of Wireless Charging Bundle.
4. Check to ensure the phone is not in a 5mm or thicker case when charging.
5. Check to ensure there is no metal obstruction on the back of the phone/phone case, or credit cards inside the case.
6. The Wireless Charging Bundle’s cable may be faulty. Try using a different cable.
7. Restart your phone. If the problem persists, please email us at support@anker.com to claim your 18-month warranty. Request sent to owner.
Q: How does the Wireless Charging Bundle charging speed compare to a traditional wired charger?
A: It depends on your device, but wireless charging generally charges at a slower rate.
Q: What is the Wireless Charging Bundle charging speed?
A: Charging speed varies depending on the device. You can expect a maximum charge current of 1A.
Q: What kind of AC adapter should I use with Wireless Charging Bundle?
A: Make sure that the AC adapter that you use has a minimum output of 2A, otherwise your devices may not charge properly.
Q: Can I use a different USB cable instead of the cable that comes with Wireless Charging Bundle?
A: Yes, other Micro USB cables can be used, but to ensure the utmost safety and performance, we strongly recommend using your device’s original cable (OEM) to charge your devices with the Wireless Charging Bundle.
